DC Props “Vertical Mover” Halloween Animatronic Mechanism Animatronics

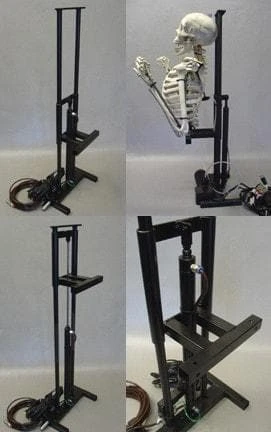

Our Vertical Mover was designed for use in areas that only straight up and down movement can be applied (ie. no 4 bar lifter mechanisms).

The vertical mover is a uniquely designed vertical slide platform that provides 14″ of vertical movement, and removes all side to stress that is commonly placed on a cylinders rod during movement. The mechanism houses a 14″ cylinder between two solid steel guides that provide an extremely smooth movement with a very strong and stable mounting surface (the travel on this mechanism can be customized up to 48″ per clients request for an additional charge).

Commonly used inside wine barrels, or to lift partial coffins vertically.

This kit includes 12V valve, flow controls for adjusting the lift and decent speeds, and all required airlines for connection to your compressor line. No controller is included. Requires 110V power and a compressor with 100-120 PSI.

Size 26″ x 12″ x 14″
